Introduction

Linear regression is a workhorse across the sciences, yet discussions often stop at the code or the final $R^2$. At its core, linear regression models the relationship between variables through a linear function, and trusting the result requires explicit attention to linearity of the signal, independence of measurements, constant variance across predictors, normality of residuals, and reliable uncertainty estimates for the coefficients. The same completeness applies to metrics: $R^2$ describes variance explained, RMSE handles prediction error units, and confidence intervals quantify parameter uncertainty.

In chemistry we fit lines for calibration curves, Beer’s Law relationships, and kinetic rate analyses. The mathematics is not exotic, but we should still be precise about what the model assumes, how to quantify fit quality, and how to interrogate residual structure.

The Mathematical Foundation

Linear regression models the relationship between a dependent variable $y$ and one or more independent variables $x$ through a linear equation. If you remember $y = mx + b$ from algebra, you already know the core idea; we are just using different notation:

where:

• $\beta_0$ is the intercept (like $b$ in $y = mx + b$)
• $\beta_1$ is the slope (like $m$ in $y = mx + b$)
• $\epsilon$ represents the error term (residuals, since real data rarely falls perfectly on a line)

The goal is to find the values of $\beta_0$ and $\beta_1$ that minimize the sum of squared residuals:

This is the ordinary least squares (OLS) criterion. Taking partial derivatives and setting them to zero yields the closed-form solutions:

Model Assumptions Worth Testing

Even a clean analytic solution does not guarantee a trustworthy model. Before using the fit to support mechanistic or analytical claims, scan for these assumptions:

• Linearity: The expected value of $y$ changes linearly with $x$. Plotting residuals versus predicted values exposes curvature immediately.
• Independence: Successive observations should not correlate. Time series or replicate measurements drawn from the same batch often break this, and Durbin Watson tests help quantify it.
• Homoscedasticity: The variance of residuals is constant as $x$ increases. Funnel shaped residual plots or increasing RMSE in validation folds indicate violations that motivate weighted least squares.
• Normality of residuals: Residuals should approximate a Gaussian distribution for standard inference. Q Q plots or Shapiro Wilk tests are quick diagnostics.
• Measurement reliability: Predictors should be measured with lower uncertainty than the response when using ordinary least squares. When the predictor carries significant error, Deming regression is a better model.

Stating these assumptions explicitly is what allows us to justify calibration curves in a spectroscopic workflow or to defend a kinetic parameter estimate in group meeting.

Statistical Metrics That Matter

R² (Coefficient of Determination)

$R^2$ measures the proportion of variance in $y$ explained by the model:

where SST is the total sum of squares. Critical insight: $R^2$ always increases with more variables, even if they’re meaningless. For simple linear regression, $R^2 = r^2$ where $r$ is the Pearson correlation coefficient.

RMSE (Root Mean Square Error)

RMSE quantifies the average prediction error in the same units as $y$:

Unlike $R^2$, RMSE has interpretable units and tells you the typical prediction error.

Standard Errors and Confidence Intervals

The standard errors of the coefficients tell us the uncertainty in our estimates:

where MSE is the mean squared error. This allows construction of confidence intervals and hypothesis tests.

Residual Diagnostics

Residual analysis provides the most direct evidence for or against the assumptions listed above. Residual versus fitted plots reveal curvature and heteroscedasticity. Q Q plots check normality. Autocorrelation functions or simple lag plots flag temporal structure. For each diagnostic, note the specific violation it can uncover rather than reporting a figure without interpretation.

Python Implementation

Here’s a complete implementation demonstrating linear regression with comprehensive diagnostics:

import numpy as np
import matplotlib.pyplot as plt
from sklearn.linear_model import LinearRegression
from sklearn.metrics import r2_score, mean_squared_error
from scipy import stats

np.random.seed(42)

# Generate synthetic data with known relationship
n_points = 25
x = np.linspace(0, 10, n_points)
true_slope = 2.5
true_intercept = 1.0
noise_std = 2.0

# y = 2.5x + 1.0 + noise
y_true = true_slope * x + true_intercept
noise = np.random.normal(0, noise_std, n_points)
y = y_true + noise

# Fit linear regression
X = x.reshape(-1, 1)
model = LinearRegression()
model.fit(X, y)
y_pred = model.predict(X)

# Calculate statistics
r2 = r2_score(y, y_pred)
rmse = np.sqrt(mean_squared_error(y, y_pred))
residuals = y - y_pred

# Calculate confidence intervals for the regression line
predict_std = np.sqrt(mean_squared_error(y, y_pred) * (1 + 1/n_points +
                      (x - x.mean())**2 / ((x - x.mean())**2).sum()))
ci_95 = 1.96 * predict_std

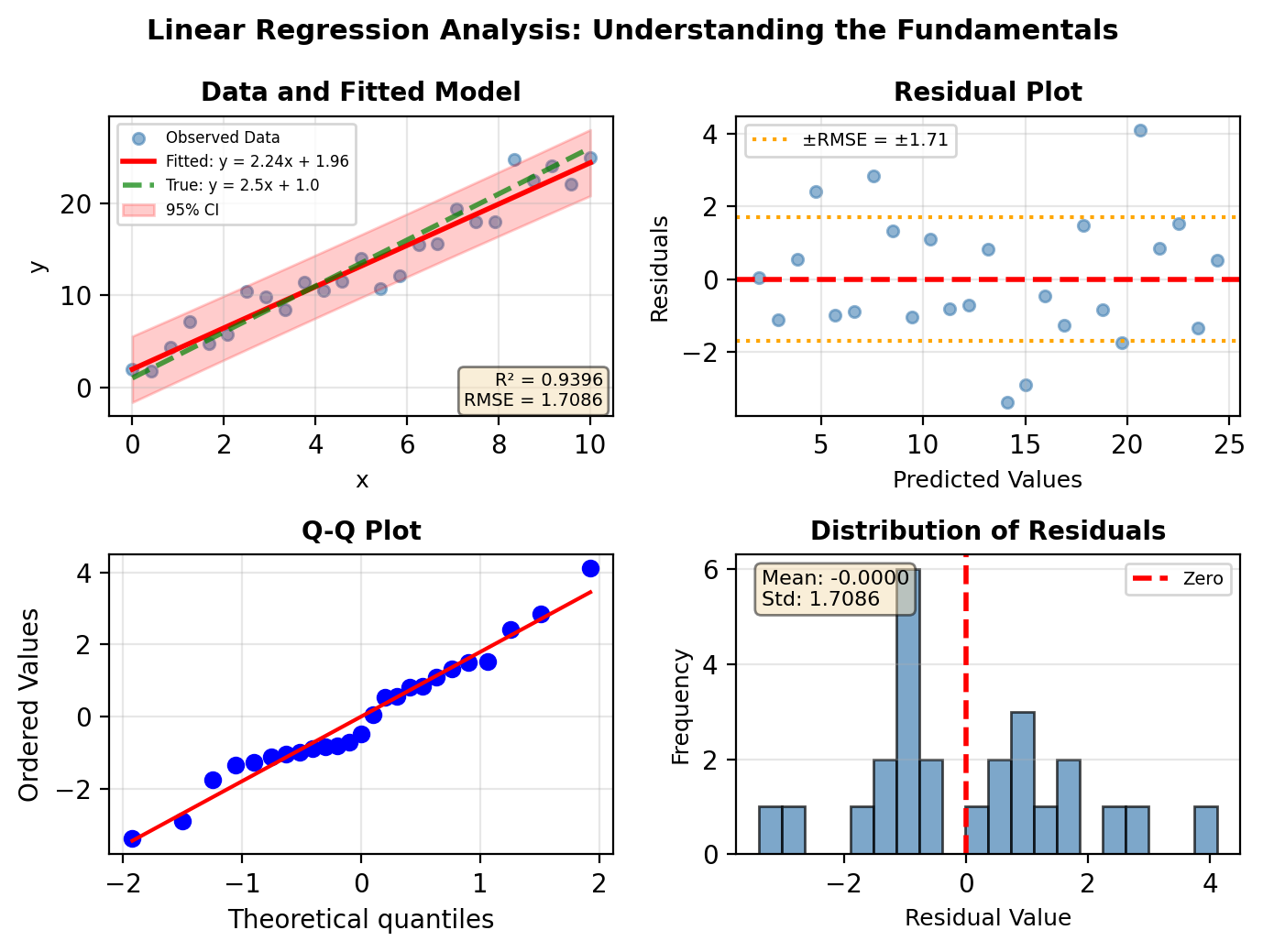

# Create comprehensive visualization
fig, axes = plt.subplots(2, 2, figsize=(7, 5.25))
fig.suptitle('Linear Regression Analysis: Understanding the Fundamentals',
             fontsize=11, fontweight='bold')

# Plot 1: Data and Fit with Confidence Interval
ax1 = axes[0, 0]
ax1.scatter(x, y, alpha=0.6, s=20, label='Observed Data', color='steelblue')
ax1.plot(x, y_pred, 'r-', linewidth=2, label=f'Fitted: y = {model.coef_[0]:.2f}x + {model.intercept_:.2f}')
ax1.plot(x, y_true, 'g--', linewidth=2, alpha=0.7, label=f'True: y = {true_slope}x + {true_intercept}')
ax1.fill_between(x, y_pred - ci_95, y_pred + ci_95, alpha=0.2, color='red', label='95% CI')
ax1.set_xlabel('x', fontsize=9)
ax1.set_ylabel('y', fontsize=9)
ax1.set_title('Data and Fitted Model', fontsize=10, fontweight='bold')
ax1.legend(loc='upper left', fontsize=6)
ax1.grid(True, alpha=0.3)
ax1.text(0.98, 0.02, f'R² = {r2:.4f}\nRMSE = {rmse:.4f}',
         transform=ax1.transAxes,
         bbox=dict(boxstyle='round', facecolor='wheat', alpha=0.5),
         fontsize=7, verticalalignment='bottom', horizontalalignment='right')

# Plot 2: Residual Plot
ax2 = axes[0, 1]
ax2.scatter(y_pred, residuals, alpha=0.6, s=20, color='steelblue')
ax2.axhline(y=0, color='r', linestyle='--', linewidth=2)
ax2.axhline(y=rmse, color='orange', linestyle=':', linewidth=1.5, label=f'±RMSE = ±{rmse:.2f}')
ax2.axhline(y=-rmse, color='orange', linestyle=':', linewidth=1.5)
ax2.set_xlabel('Predicted Values', fontsize=9)
ax2.set_ylabel('Residuals', fontsize=9)
ax2.set_title('Residual Plot', fontsize=10, fontweight='bold')
ax2.legend(fontsize=7)
ax2.grid(True, alpha=0.3)

# Plot 3: Q-Q Plot for Normality of Residuals
ax3 = axes[1, 0]
stats.probplot(residuals, dist="norm", plot=ax3)
ax3.set_title('Q-Q Plot', fontsize=10, fontweight='bold')
ax3.grid(True, alpha=0.3)

# Plot 4: Histogram of Residuals
ax4 = axes[1, 1]
ax4.hist(residuals, bins=20, alpha=0.7, color='steelblue', edgecolor='black')
ax4.axvline(x=0, color='r', linestyle='--', linewidth=2, label='Zero')
ax4.set_xlabel('Residual Value', fontsize=9)
ax4.set_ylabel('Frequency', fontsize=9)
ax4.set_title('Distribution of Residuals', fontsize=10, fontweight='bold')
ax4.legend(fontsize=7)
ax4.grid(True, alpha=0.3, axis='y')

# Add statistical summary
stats_text = f'Mean: {np.mean(residuals):.4f}\nStd: {np.std(residuals):.4f}'
ax4.text(0.05, 0.95, stats_text, transform=ax4.transAxes,
        bbox=dict(boxstyle='round', facecolor='wheat', alpha=0.5),
        verticalalignment='top', fontsize=8)

plt.tight_layout()
plt.savefig('content/ground-state/understanding-linear-regression/linear-regression-analysis.png', dpi=200, bbox_inches='tight')
plt.show()

# Print detailed statistics
print("="*60)
print("LINEAR REGRESSION ANALYSIS")
print("="*60)
print(f"\nModel Parameters:")
print(f"  Slope (β₁):     {model.coef_[0]:.4f} (True: {true_slope})")
print(f"  Intercept (β₀): {model.intercept_:.4f} (True: {true_intercept})")
print(f"\nGoodness of Fit:")
print(f"  R² Score:       {r2:.4f}")
print(f"  RMSE:           {rmse:.4f}")
print(f"  MAE:            {np.mean(np.abs(residuals)):.4f}")
print(f"\nResidual Analysis:")
print(f"  Mean:           {np.mean(residuals):.6f} (should be ≈ 0)")
print(f"  Std Dev:        {np.std(residuals):.4f}")
print(f"  Min:            {np.min(residuals):.4f}")
print(f"  Max:            {np.max(residuals):.4f}")
print("="*60)

Diagnostics in Practice

• Linearity check: Plot residuals versus fitted values. Any systematic curvature signals that a polynomial or mechanistic transform may be warranted before trusting slope and intercept.
• Homoscedasticity check: Inspect residual spreading as $x$ increases. Weighted least squares or variance stabilizing transforms help when the spread grows with signal magnitude.
• Normality check: Use Q Q plots or Shapiro Wilk tests on residuals. Deviations in the tails warn that confidence intervals on $\beta_0$ and $\beta_1$ will be distorted.
• Independence check: Compute the Durbin Watson statistic or inspect autocorrelation functions when data come from kinetics or process monitoring. Correlated residuals imply understated uncertainty.

When Linear Regression Fails

Linear regression is remarkably robust, yet several scenarios call for alternatives:

• Outliers dominate the sum of squares, so confirm leverage before reporting parameters.
• Multicollinearity in multiple regression inflates standard errors, which is why condition numbers and variance inflation factors belong in every report.
• Non constant variance violates assumptions and motivates weighted regression or generalized least squares.
• Nonlinearity often appears in spectroscopic calibrations at high concentrations; transform the predictors or adopt nonlinear models rather than forcing a line through curved data.

Scientific Perspective

Linear regression embodies the principle of parsimony. We seek the simplest model that explains the data, but adequacy demands judgment rooted in statistical evidence and domain knowledge. A reported $R^2 = 0.99$ can mask systematic baseline drift that is more damaging than random scatter in a dataset with $R^2 = 0.95$. Residual analysis tells us which situation we are in, and explicit uncertainty statements keep chemists honest about detection limits and rate constants.

Conclusion

Linear regression remains compelling because it rewards rigor. When we:

1. Confirm the assumptions with the diagnostics above,
2. Quantify fit quality with $R^2$, RMSE, and coefficient confidence intervals,
3. Investigate residuals for structure tied to experimental design,
4. Communicate uncertainty with the same seriousness as the final estimate,

The code above generates synthetic data to demonstrate principles. In real analysis, always visualize data first, check assumptions, and report uncertainty alongside point estimates.
